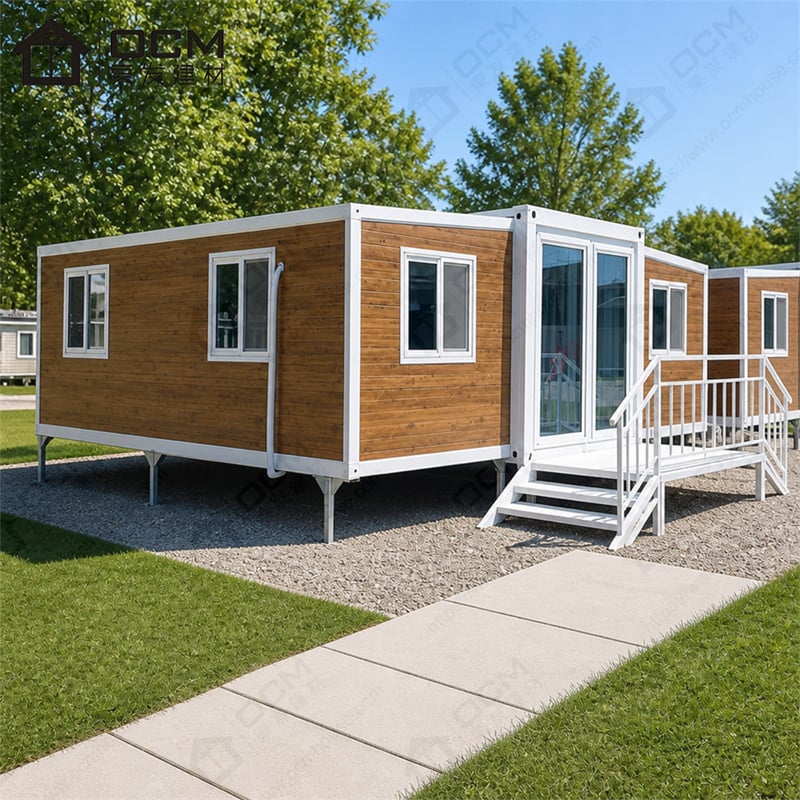

OCM 20ft Expandable Container House for Flexible Living(Backyard Guest Houses, ADU and Granny Flat Projects)

Area note:Expanded external footprint and estimated internal floor area are different measurements. Occupancy figures are planning references only, not certified maximum capacities. Confirm all final dimensions, clearances, facilities and applicable local requirements against the approved drawing.

1. Private secondary accommodation

A 20ft expandable house can be reviewed as a private space next to an existing residence or on a separate plot, subject to local planning permission. It can support a guest stay, an independent room for a family member, or a compact living arrangement when the selected floor plan provides the required facilities. Before ordering, decide whether the room should prioritise an open common area or separated sleeping space.

2. Holiday cabin and short-stay property

A small lodging business often benefits from a repeatable unit size that can be furnished and maintained using a consistent checklist. The 20ft format can be considered for a guest cabin where the operator needs a clear sleeping area, storage, ventilation and a comfortable circulation path. A guest-ready specification should also account for cleaning access, moisture management, lighting and convenient placement of any bathroom or kitchenette that is included.

3. Staff or project accommodation

For construction, agricultural, infrastructure or maintenance work, the 20ft expandable home can form part of a site accommodation plan. The key is to decide whether the unit is for one team, a supervisor, rotating staff or longer-stay personnel. That decision affects bed sizing, storage, privacy, charging points and the need for sanitary or meal-preparation facilities. The maximum number of people should never be determined only by the outside dimensions.

4. Flexible room for work and living

Some owners need a room that shifts between daily tasks instead of serving as a fixed bedroom. A 20ft expandable unit may be laid out for desk work, a hobby, occasional accommodation or storage when the floor plan supports those functions. If two uses compete for the same area, consider foldable furniture and keep the main circulation path clear. Confirm that the final openings and sockets support the intended furniture layout.

Practical application planning: For a first modular housing project, document the must-have rooms before comparing options. A simple list—sleeping privacy, a place to sit, storage, cooking, washing and working—will help determine whether the standard 20ft format is enough. If every function is marked essential, compare the actual layout against the 30ft family before committing to a compact arrangement.

Operational considerations for this use case: Think through the first week of use rather than just the delivery day. Where will residents leave shoes and bags, charge devices, clean the space, store personal items and move between daily activities? These practical details often reveal whether a nominally suitable floor plan has enough useful space or needs a different room arrangement.

(1) Useful interior area without moving to a larger format

With an estimated internal area of about 34.5 m², the 20ft model gives buyers a practical basis for arranging separate activity zones. It is not a promise that every room combination will fit; partition thickness, furniture dimensions and services reduce the area available for movement. A dimensioned plan allows an informed comparison with a 30ft model before purchase.

(2) A straightforward starting point for layout decisions

Buyers can compare a small number of meaningful choices: open versus partitioned layout, sleeping privacy, location of wet areas, amount of storage and the position of doors and windows. Making these decisions early helps avoid costly late changes and makes quotations easier to compare on the same scope.

(3) Expandable form supports shipping and placement planning

The unit is supplied in a folded configuration and then expanded at the prepared installation site. The folded dimensions are therefore important for transport, while the expanded dimensions govern the foundation or support footprint and clearances. Both sets of dimensions should appear in the project's logistics and site drawings.

(4) Configurable specification for different project types

The brochure lists EPS, rock wool or PU insulation-core options, as well as different door and window material options. The appropriate selection depends on climate, intended use, budget, local rules and the approved design. Buyers should ask for the material and component specification of their actual order rather than assuming that every option is included as standard.

(5) Additional value for project buyers

The standard 20ft format makes it easier to compare the essential choices before a project becomes overcomplicated. Buyers can decide whether they need more room, extra facilities or a different room arrangement using a known reference dimension family. This helps keep early planning concrete and reduces reliance on vague descriptions such as spacious or compact.

(6) Long-term planning value

For a first-time purchaser, a written list of inclusions is particularly valuable. It lets the buyer coordinate furniture and local site work against the actual delivery scope, and it gives the installer a clear reference at arrival. The resulting benefit is not only a product choice but a better-defined handover process.

# Layout, room use and occupancy planning

A standard model still requires a layout decision. Start with the people who will use the space and the activities they will carry out. A guest-focused layout may prioritise bed access and luggage storage; staff accommodation may need more personal storage and durable surfaces; a work-oriented unit needs a desk wall, task lighting and cable management. Do not add bedroom or sanitary labels to the order unless those areas are shown in the approved drawing.

For occupancy planning, the suggested two-to-four-person range is only a preliminary guide. The actual number depends on the approved sleeping arrangement, bed width, escape routes, bathroom facilities, local occupancy rules and how much common space the project expects to retain. A layout with multiple beds can reduce dining or living area, so the right configuration balances privacy and movement.

The estimated internal area is 34.5 m²; this does not replace clear room measurements. The final number of occupants must match the approved bed plan, sanitary provision, circulation, local requirements and the way the unit will be used.

Site Preparation & Installation

# Site preparation, delivery and installation

Prepare a stable, level support system based on site soil, drainage, project engineering and the manufacturer's approved installation instructions. Keep enough access for delivery and the expansion process. Mark service routes before the unit is placed so that water, wastewater and electrical connections do not require avoidable rework.

Factory preparation can streamline on-site work, but installation is not independent of the project conditions. Equipment availability, crew familiarity, weather, foundation accuracy, utility completion and local inspection requirements all affect the handover schedule. Ask for the actual installation sequence and define who is responsible for each site task.

Folded transport dimensions: 2200 × 5900 × 2480 mm. Expanded external dimensions: 6300 × 5900 × 2480 mm. Confirm the final packaging data, unloading arrangement, support-base details and utility responsibilities before shipment.

Q1: What is the approximate usable floor area?

Using the listed internal length and width for the 20ft expandable container house, the estimated internal floor area is about 34.5 m². The expanded external footprint is about 37.2 m², which includes the external dimensions rather than only the interior. These figures are estimates for comparing the balanced starter size and multipurpose use concept; the final room drawing should be used to confirm clear dimensions before furniture is specified.

Q2: What occupant number should I use for early planning?

For early planning, use this guide: 2–4 people as a preliminary planning guide for a suitable layout; final capacity depends on beds, circulation, facilities and local rules. It is not a certified capacity or a promise of legal occupancy. For a project centred on balanced starter size and multipurpose use, occupant planning must account for bed arrangement, furniture, ventilation, restroom capacity, movement space and the destination's applicable rules. Tell us how the unit will be used so the proposed layout can be assessed more accurately.

Q3: What is the standard layout for this unit?

The reference arrangement is: Standard 20ft expandable layout; internal partitions and room arrangement are subject to the selected drawing. Review the approved floor plan for actual room dimensions, partition positions, door swings, windows and circulation. Product images can show a sample arrangement and should not replace the drawing attached to your quotation. If a room or facility is essential, make sure it appears by name and position in the final specification.

Q4: How should I request layout changes?

Layout discussions can be based on the intended occupants, use of the rooms, preferred openings, facilities, storage and site conditions. Changes must be reviewed for technical feasibility and confirmed by OCM on an approved drawing. For this 20ft expandable container house, do not assume every requested change is available as standard or that it leaves the reference dimensions unchanged; confirm any effect on folded size and transport.

Q5: Can I select the insulation material?

Listed insulation-core options include EPS, rock wool and PU. The suitable choice depends on destination climate, intended use, project specification, local regulations and the full wall/roof assembly. Ask OCM to confirm the material, thickness and relevant technical documents for the exact order. Do not treat the material name alone as proof of a particular fire, thermal or acoustic rating.

Q6: How should I compare folded and expanded dimensions?

Use the listed folded transport dimensions for initial logistics review: 2200 × 5900 × 2480 mm. The completed external dimensions are 6300 × 5900 × 2480 mm; the installation site must accommodate the expanded form and the space required to open the unit. Ask for final packing dimensions, gross weight and loading advice for the actual order before freight is booked.

Q7: How should the base and service routes be prepared?

The site needs an appropriate support base, a clear delivery and unloading route, space for the expansion sequence, drainage and planned utility routes where required. Foundation design depends on ground conditions, engineering and local requirements. Provide the site plan to the installation team and compare it with the supplier's instructions before arranging delivery or preparing the support base for balanced starter size and multipurpose use.

Q8: Can installation time be guaranteed?

The expandable construction is intended to reduce some on-site assembly compared with building every component on location, but no fixed completion time should be assumed from the product category alone. Timing depends on the prepared base, lifting equipment, crew, weather, services, final fit-out and inspection. Ask for a project-specific installation sequence and confirm which activities are included in the supplier's scope.

Q9: How do I confirm shipment and packaging details?

OCM's sea-export packing description includes moisture-resistant wrapping and anti-collision protection; confirm the actual package for your order. The exact package, loading arrangement and included components must be confirmed for the order. Before shipment, ask for the packing list, folded dimensions, shipping weight, loading plan and any required documents. The freight forwarder should evaluate the actual cargo data and destination constraints.

Q10: How can I verify the specification for my destination?

Requirements depend on the destination, intended occupancy and whether the unit is used as a residence, guest accommodation, workplace or public facility. Before purchase, check planning permission, structural design, fire safety, energy performance, sanitation, electrical work and occupancy rules with relevant local professionals or authorities. Any product-specific certificates or reports should be verified for the actual model and market.

Q11: Are cooking and washing facilities part of the supply?

Kitchen and restroom facilities are not established by the stated layout and must be confirmed separately. For the specified layout (Standard 20ft expandable layout; internal partitions and room arrangement are subject to the selected drawing.), confirm the exact fixture package, cabinetry, appliances, hot-water equipment and utility connections in the approved quotation. Please identify every required item before production. If the project needs an independent kitchen or a complete bathroom, ask for a drawing and inclusion list showing the fixture arrangement, water and wastewater points, ventilation and electrical provisions.

Q12: How can I help OCM quote the correct configuration?

Please share the destination country, intended use, quantity, preferred layout (Standard 20ft expandable layout; internal partitions and room arrangement are subject to the selected drawing.), target occupants, insulation preference, door/window requirements, required kitchen or restroom facilities and any site-access limitations. A site sketch or photos can help where delivery access is difficult. Ask for a dimensioned drawing, material list, package details, included/excluded items and confirmation of the final configuration before ordering.
